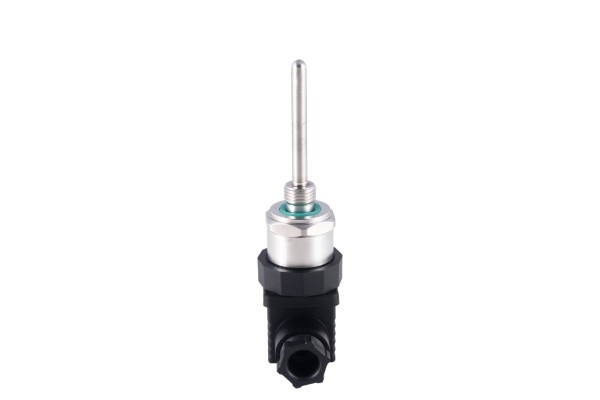

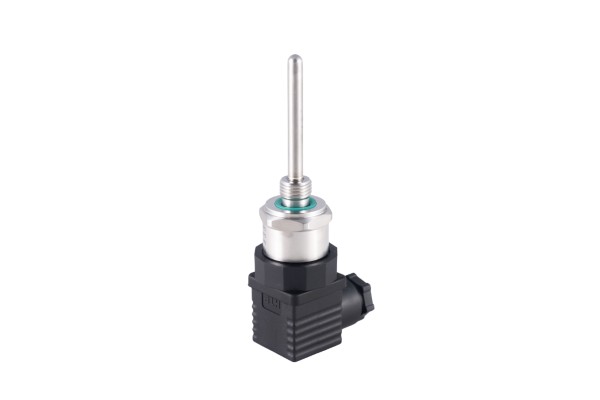

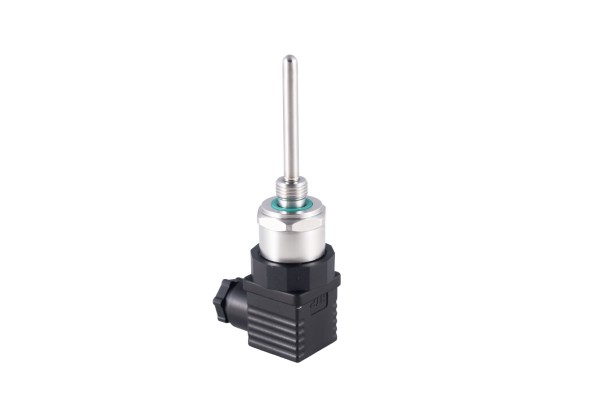

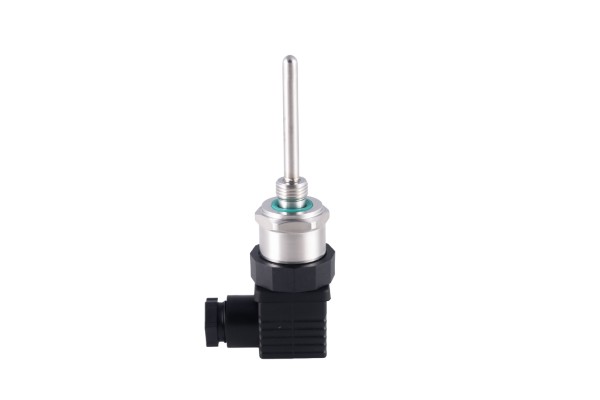

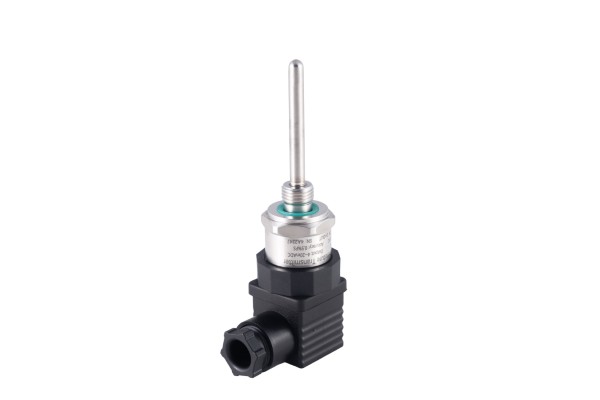

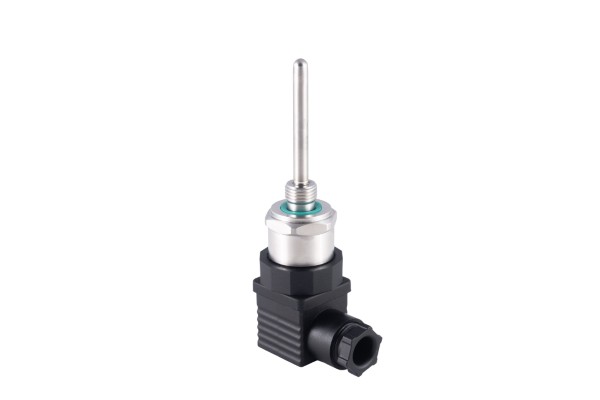

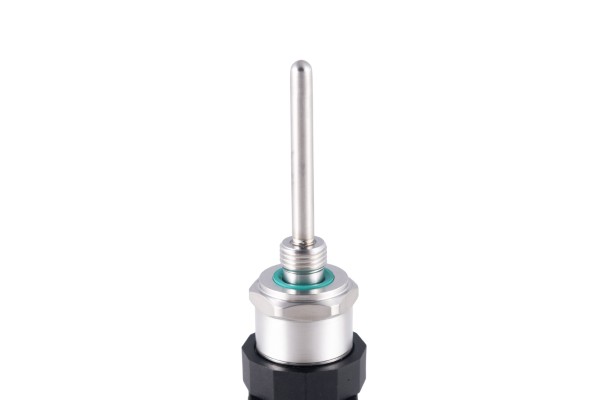

RB02 Temperature Transmitter
₹4,284.00
(Excluding Packaging & Shipping Charges)
RB02 Temperature transmitter use PT100/PT1000 as the sensing element, signal is amplified into standard 4-20mA, 0-5V/0-10V, RS485 etc. There are linear correction circuit applied in the transmitter, make sure the entire Transmitter has very good accuracy.
Features:
- Easy mounting, no need for maintenance.
- Available for Liquid and Gas.
- Multiple output signal optional.
- Quick response, good accuracy.
- Excellent long-term stability.
- Different process connection available.
Technical Specification
| Specifications | Details |
|---|---|
| Measure Range | As per selection table |
| Probe diameter | 6mm, 8mm, 10mm, 12mm |
| Probe length | 50mm/100mm/150mm/200mm/customised |
| Sensor | PT100/PT1000 |
| Output signal | 4–20mADC, 0–5VDC, 0–10VDC |
| Power supply | 12–30VDC |
| Accuracy | ±0.3%FS, ±0.5%FS |
| Response time | T=5°C 2.3s; T=90°C 5.4s |
| Reverse polarity protection | YES |
| Working temperature (body) | -40~+85°C |
| Case material | SS304 |
| Wetted parts material | SS304 |
| Protection | IP67 |

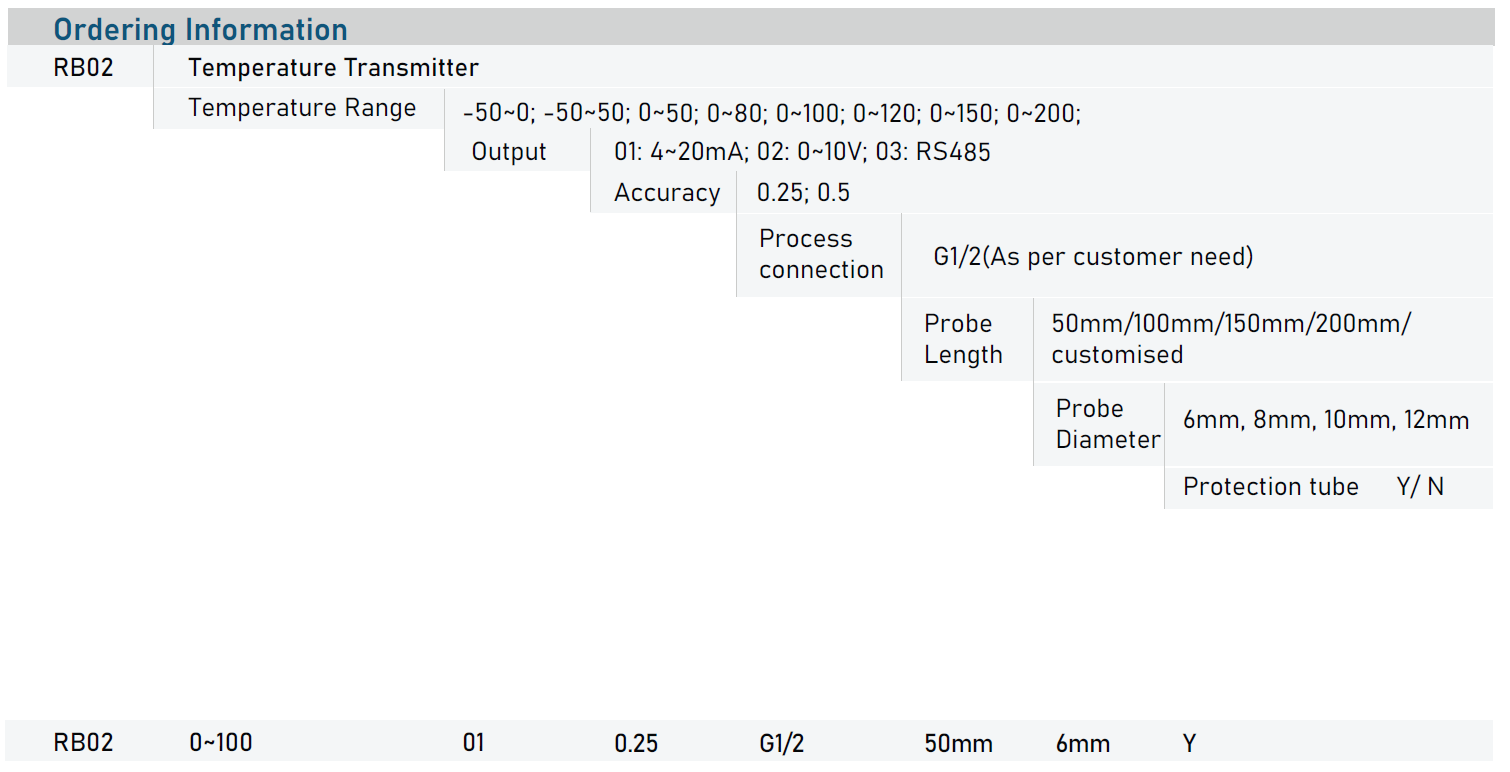

Ordering Code
