RB21P Hygienic Pressure Transmitter
₹6,732.00
(Excluding Packaging & Shipping Charges)

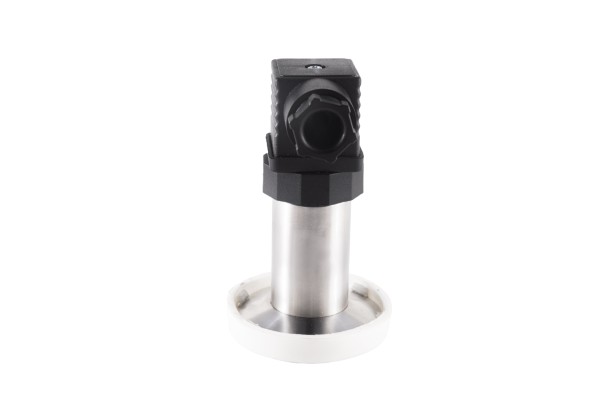

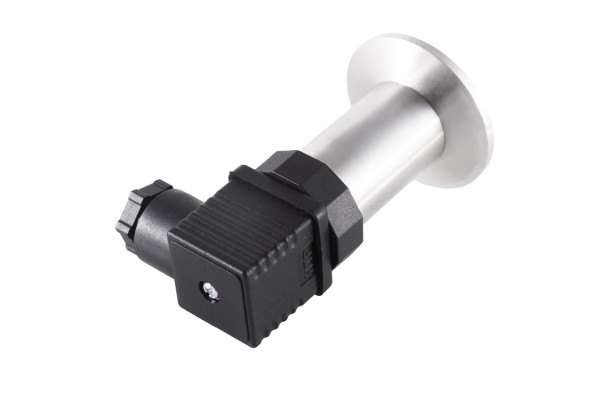

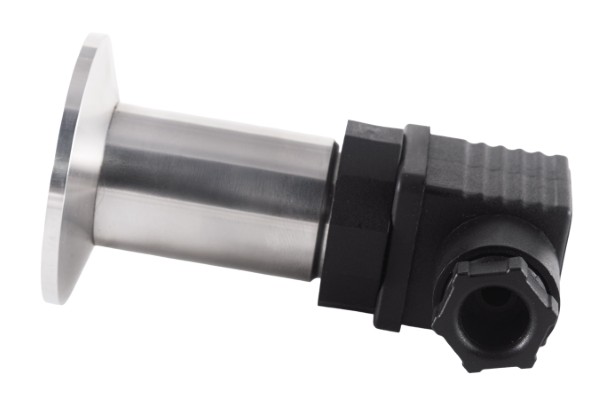

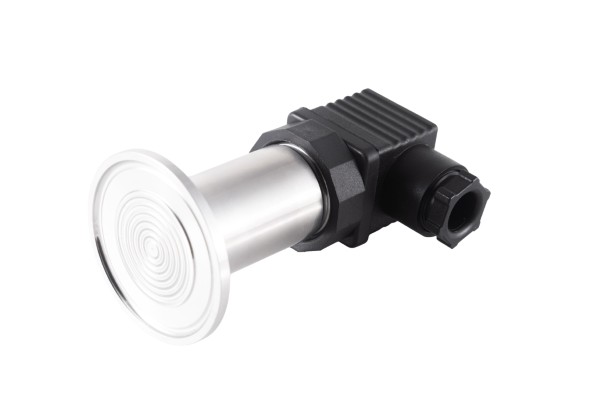

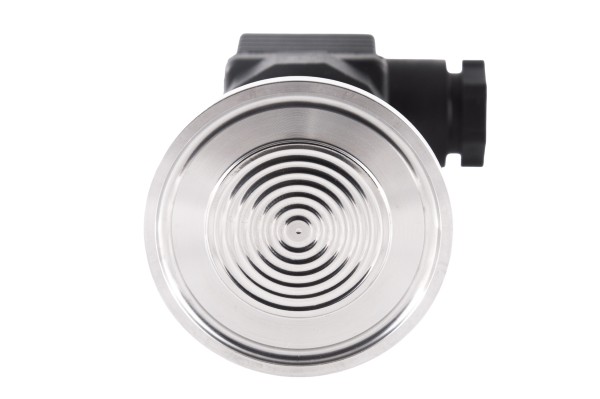

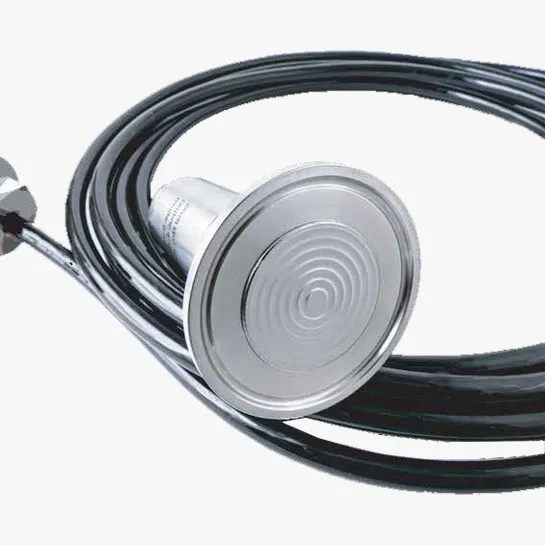

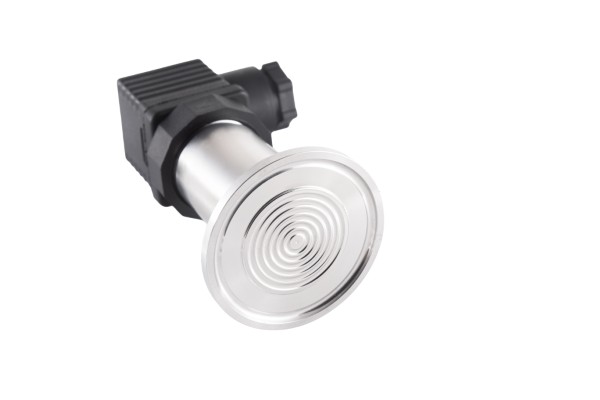

RB21P is piezo-resistive pressure transmitter, uses high
stable and reliable pressure sensor and special circuit
board to produce transmitter. This product is having standard
clamp mounting, typically used for food & beverage, Pharma
applications.
RB21P series Hygienic pressure transmitters are specialized
devices designed for applications in industries where hygiene
and cleanliness are of utmost importance,such as food and
beverage, pharmaceuticals, and biotechnology.
Features
- Stainless Steel Construction
- Hygienic Process Connections
- Sanitary Seals
- Easy-to-Clean Design
- Accurate Pressure Measurement
Specifications
| Model | RB21P |
|---|---|
| Pressure type | Relative (gauged) & Absolute |
| Compensated temperature range | -10 … 55 °C |
| Measuring Range | -1…0 ~ 0.2… 350 bar |
| Long term stability | <0.3 % FSR/a |
| Accuracy | 0.5% FS |
| Response time | <5 ms |
| Min. measuring span | 100 mbar |
| Max. measuring span | 350 bar |
| Over pressure | 1.5 times FS |
| Temperature coefficient | <0.15 % FSR/10K, measuring span <0.25 % FSR/10K, zero point |
| Process temperature | -30 … 80 °C |
| Process pressure | Refer measuring range for Process pressure |
| Connection variants | 50.5 mm Tri-clamp |
