RB21S Anti-corrosive Pressure Transmitter
₹12,240.00
(Excluding Packaging & Shipping Charges)
RB21S is Anti-corrosive Pressure Transmitter with special material for anti-corrosive application. It is made by ceramic diaphragm sensing element and high accurate circuit board into the PTFE wetted parts. Integrated construction and standard signal provide the user easy and convenient application in the local working place. RB21S Anti-corrosive Pressure Transmitter is suitable for pressure/level measurement of corrosive liquid.
Features
- Integrated construction, unnecessary to do outer adjustment
- High-performance ceramic sensing element
- Resistance to strong acids, alkalis, and other highly corrosive liquids
- Multi-protection design with enhanced durability
- High reliability and stability
Applications
- Chemical industry
- Pharmaceutical industry
- Water treatment industry
- Oil and gas industry
- Food and beverage industry
- Laboratory and scientific research
Technical Specification
| Specifications | Details |
|---|---|
| Pressure type | Relative (gauged) |
| Compensated temperature range | -20~70°C |
| Measuring Range | 0~0.3 ... 30 bar |
| Long term stability | ≤±0.2% FS/year |
| Accuracy | ±0.25% FS / ±0.5% FS |
| Response time | <5 ms |
| Temperature coefficient (span) | <0.15% FSR/10K |
| Temperature coefficient (zero point) | <0.25% FSR/10K, -30 ... 80°C |
| Process pressure | Refer measuring range for Process pressure |
| Connection variants | G 1/4” or PG 1/2” Male thread |
| Application Temperature | -10~80°C |

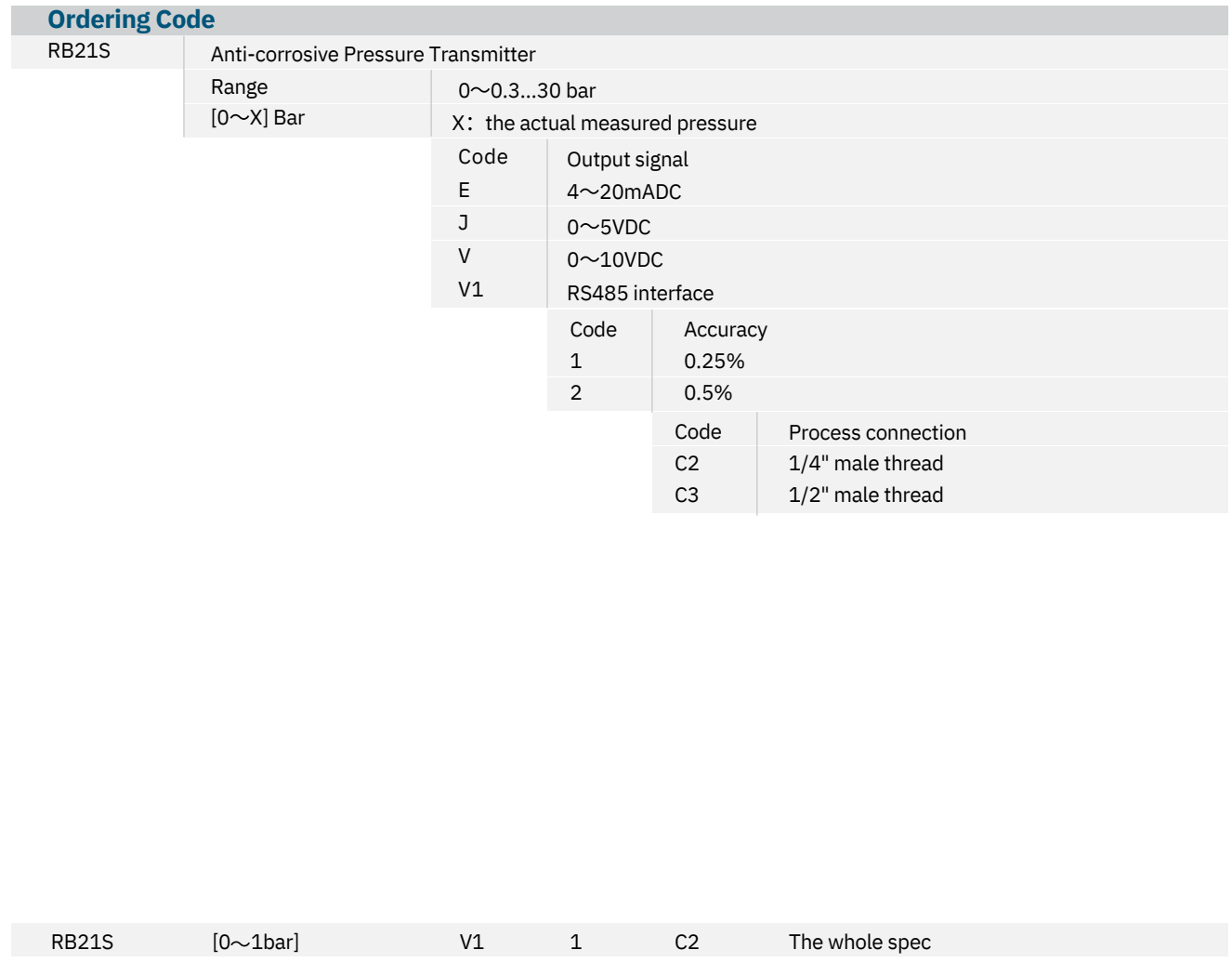

Ordering Code
